Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle

Brand Name : LKY

Model Number : Bow Shackle

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Galvanized Drop Forged Bolt Type Bow Shackle

Material : Alloy steel

Surface : Electric galvanized, hot dipped galvanized, painted

Size : 3/16" - 2-1/2 ''

Packing : Cartong + Pallet

WLL : 1/3 - 55 tons

Contact Now

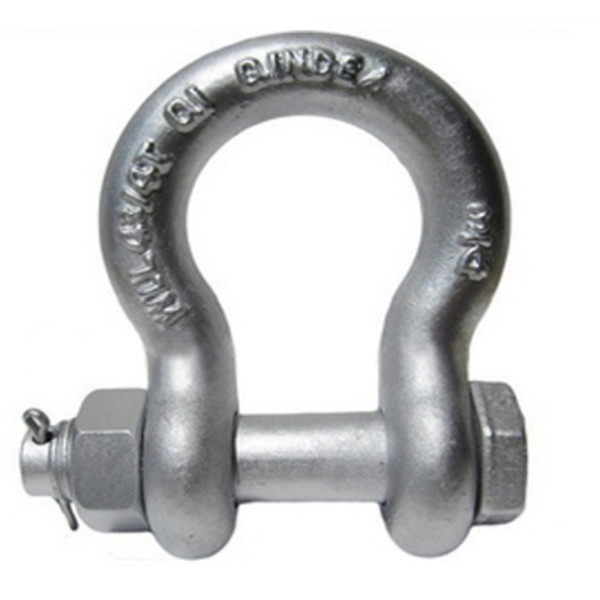

Galvanized Drop Forged Bolt Type Bow Shackle

Galvanized drop forged bolt type shackle also referred to as an anchor shackle. With a larger 'O' shape to the loop, it can take loads from many directions without developing as much side load. However, the larger shape to the loop does reduce its overall strength.

Details:

1. Model: Galvanized drop forged bolt type shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 3/16 inch to 2 2/1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Nominal size	Working load limit	Dimensions(in)									Weight each(lbs)
in	tons	A	B	C	D	E	F	H	L	N	G2130
3/16	1/3	0.38	0.25	0.88	0.19	0.6	0.56	1.47	0.98	0.19	0.06
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.84	1.28	0.25	0.11
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	2.09	1.47	0.31	0.22
3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	2.49	1.78	0.38	0.33
7/16	1-1/2	0.75	0.5	1.69	0.44	1.16	1.06	2.91	2.03	0.44	0.49
1/2	2	0.81	0.64	1.88	0.5	1.31	1.19	3.28	2.31	0.5	0.79
5/8	3-1/4	1.06	0.77	2.38	0.63	1.69	1.5	4.19	2.94	0.69	1.68
3/4	4-3/4	1.25	0.89	2.81	0.75	2	1.81	4.97	3.5	0.81	2.72
7/8	6-1/2	1.44	1.02	3.31	0.88	2.28	2.09	5.83	4.03	0.97	3.95
1	8-1/2	1.69	1.15	3.75	1	2.69	2.38	6.56	4.69	1.06	5.66
1-1/8	9-1/2	1.81	1.25	4.25	1.13	2.91	2.69	7.47	5.16	1.25	8.27
1-1/4	12	2.03	1.4	4.69	1.29	3.25	3	8.25	5.75	1.38	11.71
1-3/8	13-1/2	2.25	1.53	5.25	1.42	3.63	3.31	9.16	6.38	1.5	15.83
1-1/2	17	2.38	1.66	5.75	1.53	3.88	3.63	10	6.88	1.62	19
1-3/4	25	2.88	2.04	7	1.84	5	4.19	12.34	8.8	2.25	33.91
2	35	3.25	2.3	7.75	2.08	5.75	4.81	13.68	10.15	2.4	52.25
2-1/2	55	4.13	2.8	10.5	2.71	7.25	5.69	17.9	12.75	3.13	98.25

Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle

Packing & Delivery

Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle
